Published: 20, August, 2025

Order sharing

Project location: Thailand

Product:

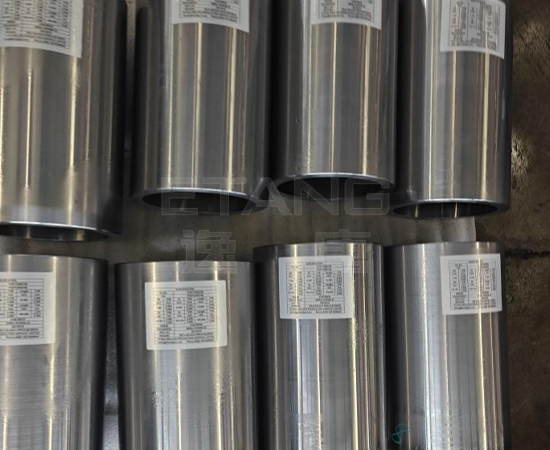

Blast Joint

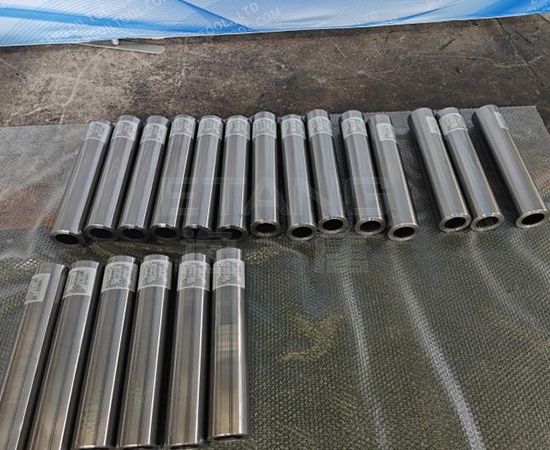

1. 18-inch length ( 20 pieces )

OD: 3.668 inch    ID: 2.400 inch    Length: 12 inch

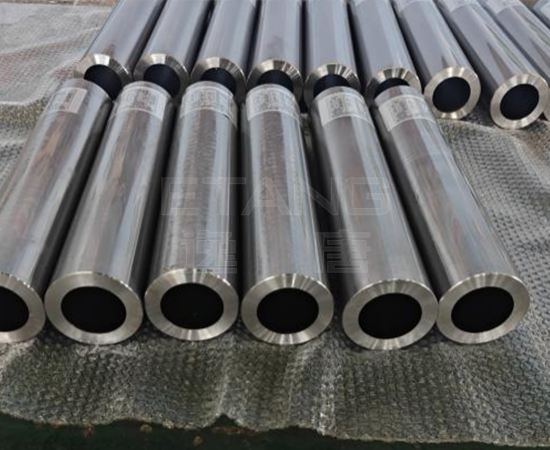

2. 12-inch length ( 8 pieces )

OD: 7.389 inch    ID: 6.064 inch    Length: 12 inch

Chemical composition(%) ：

C	Si	Mn	P	S	Cu	Ni	Cr	Mo	DI
0.4	0.29	0.95	0.012	0.002	0.028	0.017	1.009	0.204	5.68

Mechanical Properties：

Yield Strength (Mpa)	Tensile Strength (Mpa)	Elongation A(％)	Test Temperature	Impact Energy AKV(J)
650	748	24.5	-10°C	131

Order details:

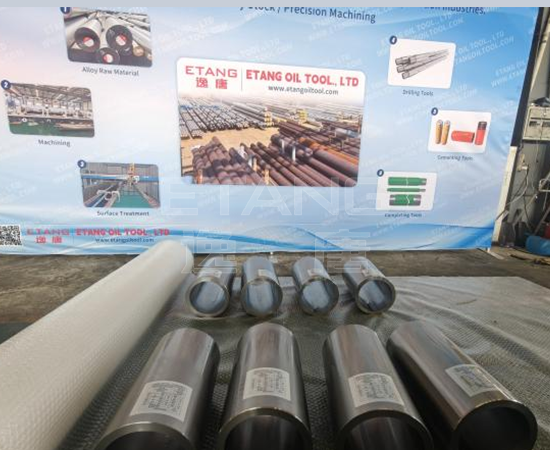

　　A Thai customer placed an order for a batch of wear-resistant blast joints, specifying 20 pieces at 18-inch length and 8 pieces at 12-inch length. Upon receiving the order, ETANG efficiently managed the entire process from raw material allocation and machining to final delivery, ensuring timely completion within the agreed schedule.

　　Machining Process: The tubular machining involves the following sequential operations: Rough Boring → Finish Boring → Honing → Saw Cutting (to required length) → Rough External Turning → Finish External Turning.
